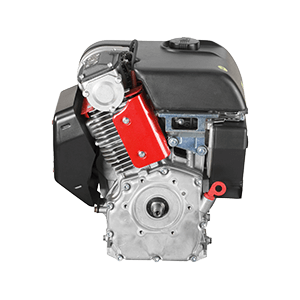

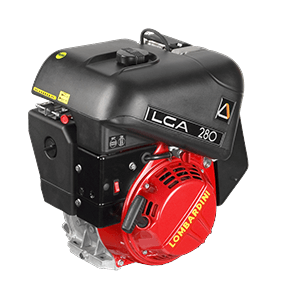

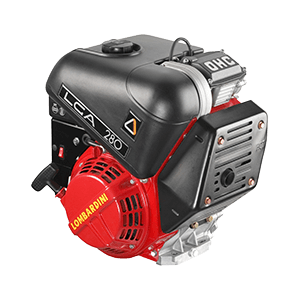

Lombardini Engine LGA 280
Lombardini engine LGA 280 with a 23 cone, electric start or recoil start.
- N 6.6 kw | 9 hp
- NB 5.9 kw | 8 hp
- 1 cylinders | 3600 rpm
- 275 cm3 | 19.2 @ 1200 Nm@rpm
Main applications
Two-wheel tractor | Motofalce | Tiller | Lawn mower | Concrete mixer | Dumper | Motor compressor | Asphalt cutter | Generator | Refrigerating unit | Welder | Motor sweeper | Aerial platform
Use and maintenance manual
Workshop Manual
One cylinder spark ignition engine
4 stroke
Forced air cooling
Belt driven overhead camshaft (OHC) and toothed belt
Automatic centrifugal speed governor
| Cylinders | 1 |
| Bore (mm) | 74 |
| Stroke (mm) | 64 |
| Engine displ (cm3) | 275 |
| Compression ratio | 8.5:1 |

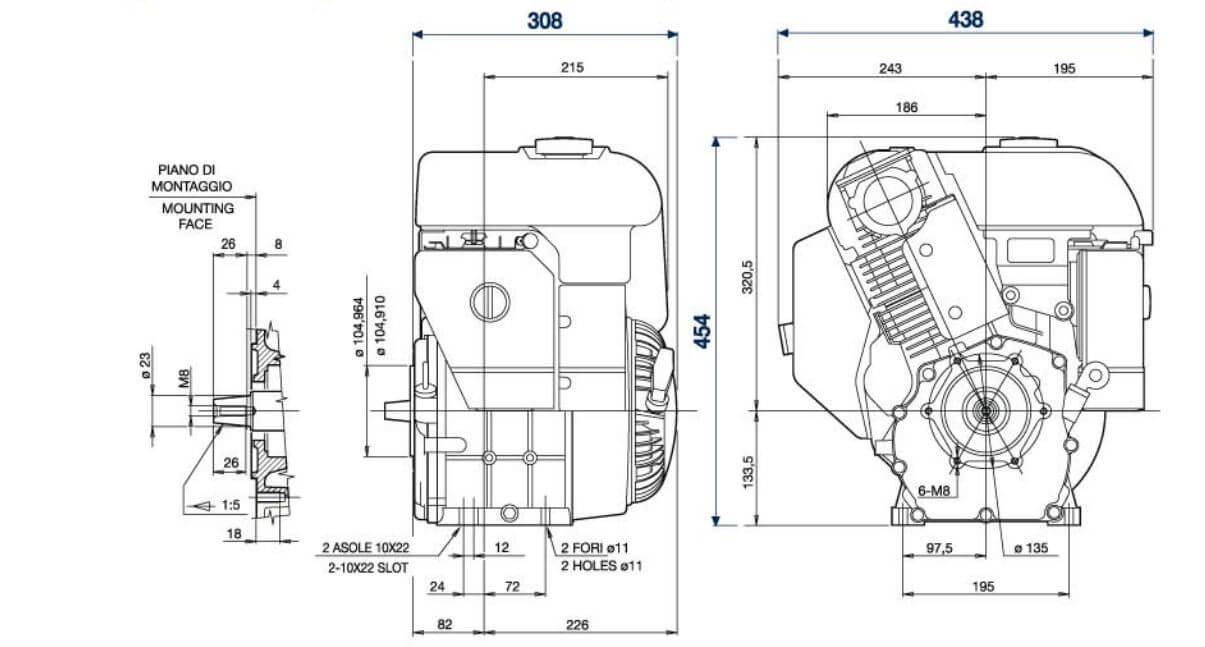

| H × L × W (fan excluded) (mm) | 454x438x308 |
| Dry weight (kg) | 30 |
| Fuel tank capacity (l) | 6.5 |
| Oil sump capacity (l) | 1.2 |
| Max. allowable tilt for short time operation (max time 30 min) |
30° |
| Max. allowable tilt for peak values (max time 1 min) |
35° |
| Cap. of air required for correct combustion @3600 (l/min) | 450 |
| Cap. of air required for correct cooling @3600 (l/min) | 6000 |
