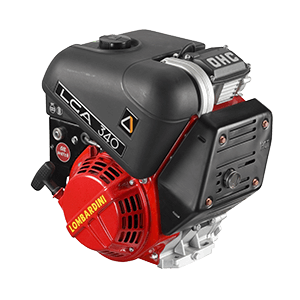

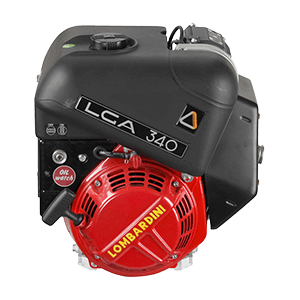

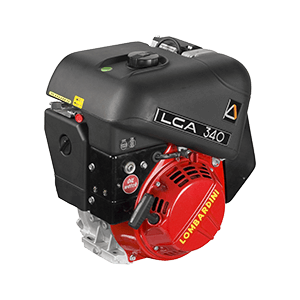

Lombardini Engine LGA 340
Lombardini engine LGA 340, gasoline feeding. Electric or recoil starter, with a 23 cone.

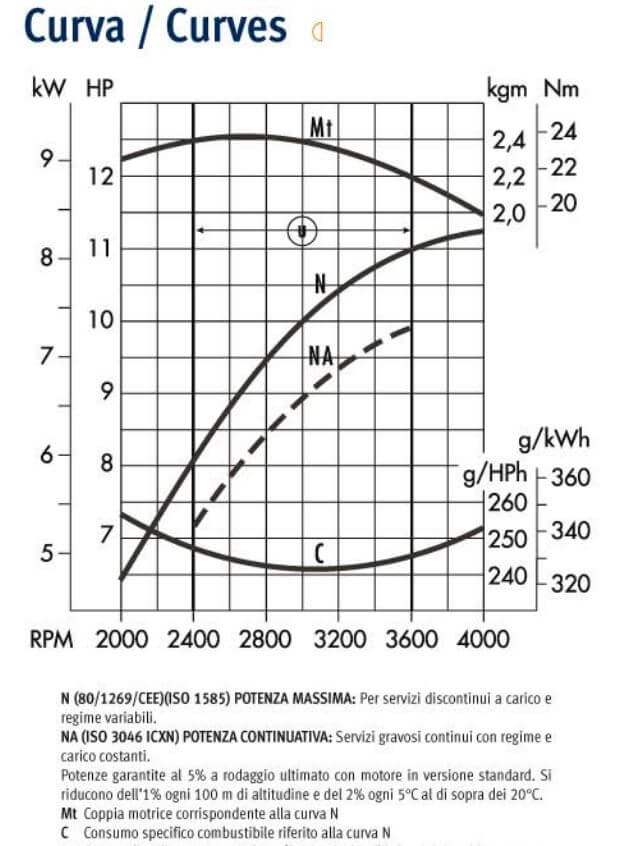

- N 8.1 kw | 11 hp
- NB 7.4 kw | 10 hp
- 1 cylinder | 3600 rpm
- 338 cm3 | 23.7 @ 1200 Nm@rpm
Main applications
Two-wheel tractor | Motofalce | Tiller | Lawn mower | Concrete mixer | Dumper | Motor compressor | Asphalt cutter | Generator | Refrigerating unit | Welder | Motor sweeper | Aerial platform
Use and maintenance manual
Workshop Manual
One cylinder spark ignition engine
4 stroke
Forced air cooling
Belt driven overhead camshaft (OHC) and toothed belt
Automatic centrifugal speed governor
| Cyinder | 1 |
| Bore (mm) | 82 |
| Stroke (mm) | 64 |
| Engine displ (cm3) | 338 |
| Compression ratio | 8.5:1 |

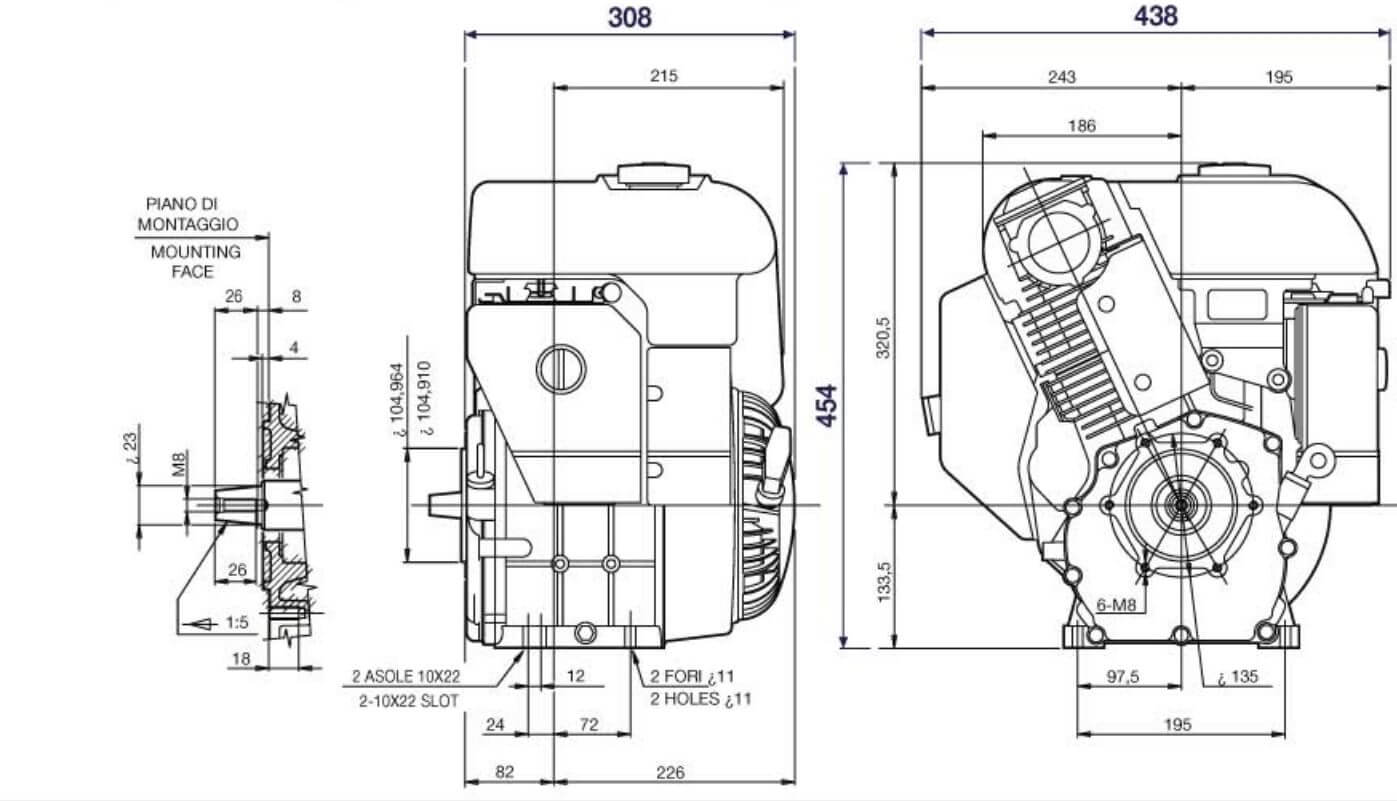

| H × L × W (fan excluded) (mm) | 454x438x308 |
| Dry weight (kg) | 31 |
| Fuel tank capacity (l) | 6.0 |
| Oil sump capacity (l) | 1.2 |
| Max. allowable tilt for discontinuous service (instantaneous) |
30° / 35° |
| Cap. of air required for correct combustion @3600 (l/min) | 550 |
| Cap. of air required for correct cooling @3600 (l/min) | 6000 |
