Lombardini Engine LGW 523 MPI
Lombardini engine LGW 523 MPI is a 4-stroke petrol engine, 2-cylinder in-line liquid-cooled.
Aluminum alloy head cylinder block.

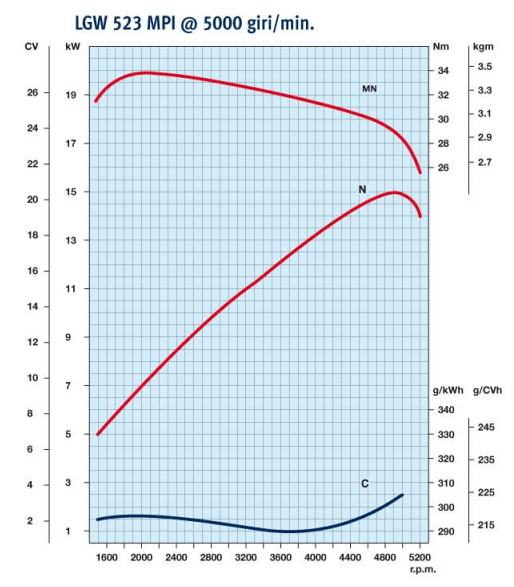

- N 15 kw | 20.4 hp
- 2 cylinders | 5000 rpm
- 505 cm3 | 39.0 @ 1200 Nm@rpm
Main applications
Refrigerating unit | Welder | Motor sweeper | Aerial platform | Mini car | City car | Leisure vehicles
Use and maintenance manual
Workshop Manual
Twin-cylinders, four stroke spark-ignited engine
Alluminium engine block and cylinders head
Single overhead belt-drivem camshaft 2 valves for cylinder
Hydraulic tappets
Multipoint “in manifol” gasoline injection with fully electronic engine management
Motored throttle (drive by wire)
Forced lubrification with vane pump on crankshaft
Forced liquid cooling
Integrated injection and starting system
| Cylinders | 2 |
| Bore (mm) | 72 |
| Stroke (mm) | 62 |
| Engine displ (cm3) | 505 |
| Injection type | Gasoline |
| Compression ratio | 10.7:1 |

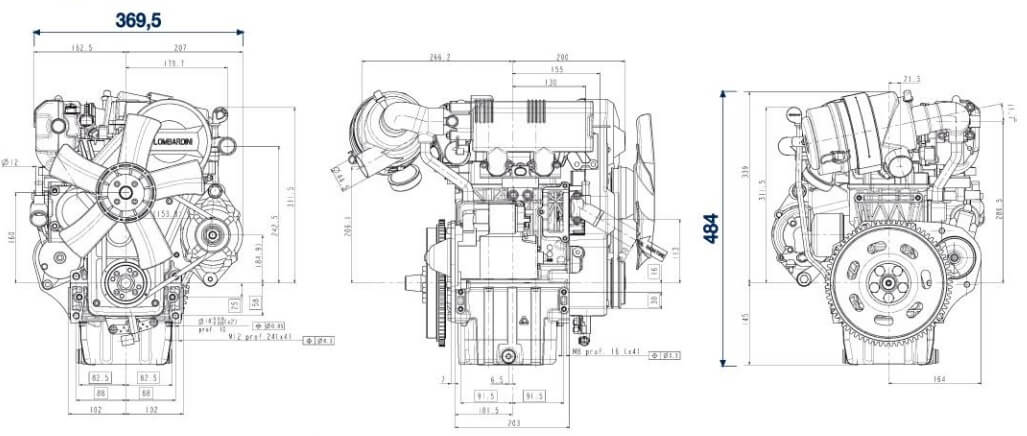

| 484 x 369.5 | |
| Dry weight (kg) | 49 |
| Water pump delivery at 5000 rpm (l/min) | 75 |
| Oil sump capacity (l) | 1.3 |
| Combustion air required at 5000 rpm (l/min) | 1100 |
