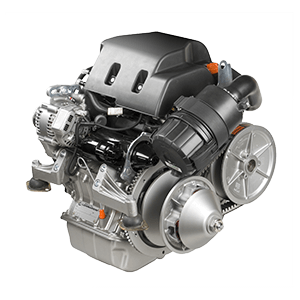

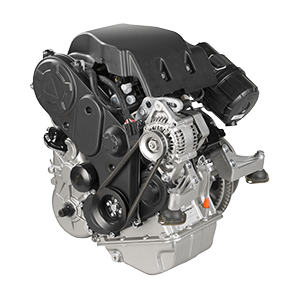

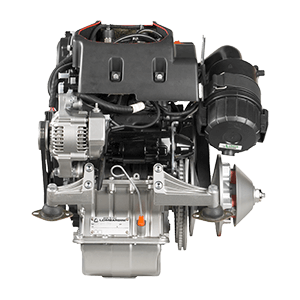

Lombardini Engine CT Move
Lombardini engine CT Move is a 4-stroke diesel for city cars, mini cars and A.T.V (All Terrain Vehicles).
- NB 13 kw | 17.7 hp
- 2 cylinders | 4400 rpm
- 440 cm3 | 21 @ 2200 Nm@rpm
Main applications
Mini cars (EURO 2 homologation obtainable) | A.T.V. (All Terrain Vehicles)
Use and maintenance manual
Workshop Manual
4-stroke diesel engine with 2 cylinder in line
Liquid-cooled (Loose radiator with electrical fan optional)
Tilted position of 40° towards echaust and inlet manifolds
Die-casted aluminium engine block with re-borable cast iron integral liners
Aluminium cylinder head
“Uni flow” intake and exhaust manifold cab side
Echaust manifold complete with thermal protection
Dry air cleaner on the flywheel side
Breather return oil steam
Double balance shaft
Belt-driven Single overhead camshaft
Rocker arm with hydraulic tappets
Direct injection “common rail” system with electronic control
High pressure pump on cylinder head
Forced lubrification with vane pump
Full flow external oil filter
High capacity denoised oil sump
Water pump in engine bloc
Heating cab system provision
Electrical starting with starter motor and external alternator (40 Amp)
Pre-heating glow plugs controlled by the ECU
Complete electrical harness and fuses box
Single connector cab interface
Denoised cover
| Cylinder | 2 |
| Bore (mm) | 68 |
| Stroke (mm) | 60.6 |
| Engine displ (cm3) | 440 |
| Compression ratio |
20:1 |
| Compression sequence (degrees) |
360 |
-
CVT characteristics
Centrifugal mass system on driving pulley
Engine brake effect with shaft on driven pulley
Exclusive electronic management (ECU) for the engine brakeReduction gear / DIfferential
Transmission range: 1 gear forward and 1 reverse
Two speed ratio available
Speed detector for electronic vehicle speedometer
Integrated shock absorber
Integrated oil breather
Magnetic filter
Integrated differential

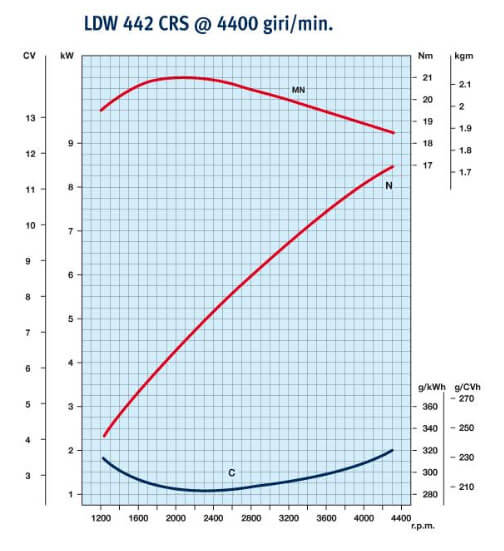

| Rating (kW/HP)
N (80/1269/CEE)ISO 1585 |
8.5/11.5 |
| Max Torque (Nm@rpm) | 21.0@2200 |
| Min.idle speed (rpm) | 1000 |
| Water pump delivery at 5000 rpm (l/min) | 1000 |

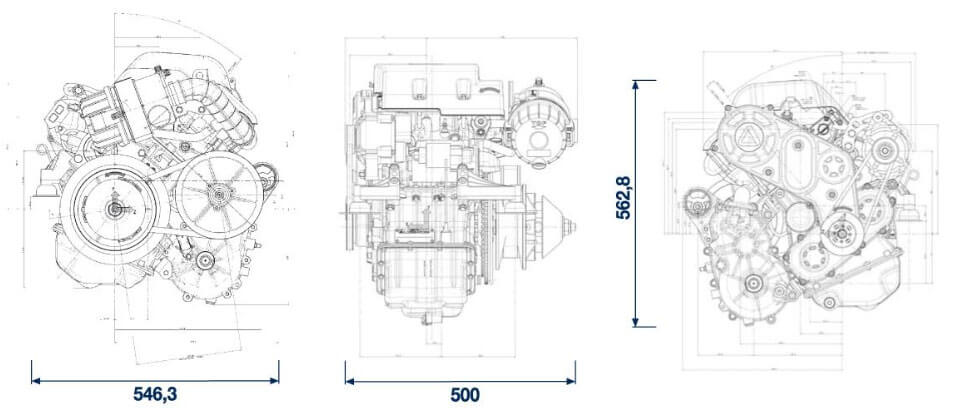

| H × L × W (mm) | 562.8×546.3×500 |
| Dry weight (kg) | 70 |
| Ambient operating temps (°C) | -15° +50° |
| Gradeability-all round ((intermittent -30 min) (deg) |
25° |
| Gradeability-all round (peak value -1 min) (deg) |
35° |
| Cap. of air required for correct combustion @3600 (l/min) |
41 |
| Cap. of air required for correct cooling @3600 (l/min) | 49 |
| Oil sump capacity (l) | 2.1 |
| Oil consumption (kg/h) | 0,004 |
| Recommended battery (V/Ah) | 11 44 400 A (EN) |
| Starter (kW) | 1.1 |
