Lombardini Engine LDW 1003 SD
| Cylinders | 3 |
| Bore x Stroke (mm) | 75×77,6 |
| Displacement (cm3) | 1028 |
| Power Max HP | 30 hp |
| Power Max KW | 22,1 kw |
| Propeller Power HP | 28 hp |
| Propeller Power KW | 20,6 kw |
| Compression Ratio | 22,8:1 |
| RPM | 3600 |
Description

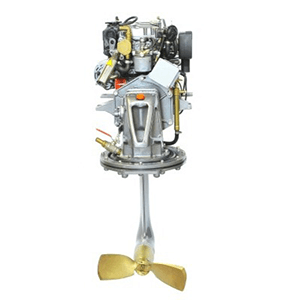

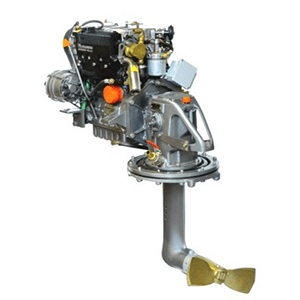

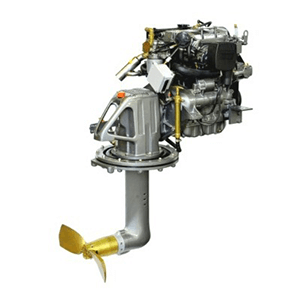

Lombardini LDW 1003 SD marine inboard 4-stroke diesel engine with Saildrive transmission system. This 30 hp Lombardini Marine 3-cylinder engine, with liquid cooling via a heat exchanger, for strength and reliability, as well as for compactness and lightness, finds its ideal location on sailing and racing boats, thanks above all to the innovative S-Drive foot drive system.
Use and maintenance manual FOCS
Use and maintenance manual Sail Drive
Lombardini Marine Catalog
It is a family of 4-stroke marine diesel inboard engines (LDW 502 M, LDW 702 M, LDW 1003 M, LDW 1404 M) liquid cooled with heat exchanger, with zinc anode, monobloc cylinder block in cast iron (in aluminum on LDW 502M) with rebreatable liners, monolithic aluminum head, indirect injection with pump-injector, single overhead shaft distribution, timing control with toothed belt; oil pump on the crankshaft; fresh water pump in the monobloc; water-cooled exhaust pipe; self-priming sea water pump; air intake filter. Special anti-corrosion treatments.
Code: LDW 1003 SD
Categories: Sail Drive, Inboard Marine Engines
