Lombardini Engine LDW 502 SD
| Cylinders | 2 |
| Bore x Stroke (mm) | 72×62 |
| Displacement (cm3) | 505 |
| Power Max HP | 13 hp |
| Power Max KW | 9,5 kw |
| Propeller Power HP | 11,5 hp |
| Propeller Power KW | 8,5 kw |
| Compression Ratio | 22,3:1 |
| RPM | 3600 |
Description

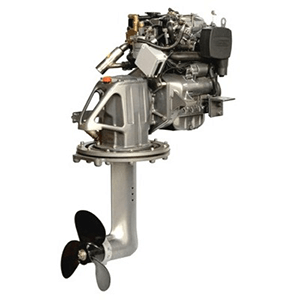

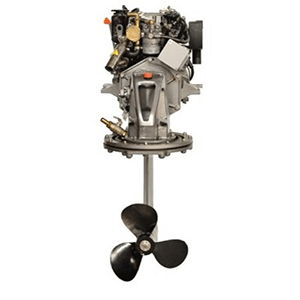

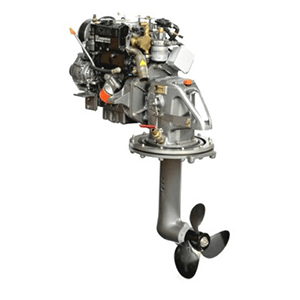

Lombardini LDW 502 SD marine diesel inboard engine with 13 hp 2-cylinder Saildrive transmission. This small engine of the Lombardini Marine family is characterized by particular lightness and compactness despite guaranteeing indisputable sturdiness and reliability. Thanks to the innovative S-Drive foot transmission system, it is widely used in the marine environment for sailing and racing boats.
Use and maintenance manual FOCS
Use and maintenance manual Sail Drive
Lombardini Marine Catalog
It is a family of 4-stroke marine diesel inboard engines (LDW 502 M, LDW 702 M, LDW 1003 M, LDW 1404 M) liquid cooled with heat exchanger, with zinc anode, monobloc cylinder block in cast iron (in aluminum on LDW 502M) with rebreatable liners, monolithic aluminum head, indirect injection with pump-injector, single overhead shaft distribution, timing control with toothed belt; oil pump on the crankshaft; fresh water pump in the monobloc; water-cooled exhaust pipe; self-priming sea water pump; air intake filter. Special anti-corrosion treatments.
Code: LDW 502 SD
Categories: Sail Drive, Inboard Marine Engines
