Lombardini Engine LDW 702 SD
| Cylinders | 2 |
| Bore x Stroke (mm) | 75×77,6 |
| Displacement (cm3) | 686 |
| Potenza Max HP | 20 hp |
| Power Max KW | 14,7 kw |
| Propeller Power HP | 18 hp |
| Propeller Power KW | 13,2 kw |
| Compression Ratio | 22,8:1 |
| RPM | 3600 |
Description

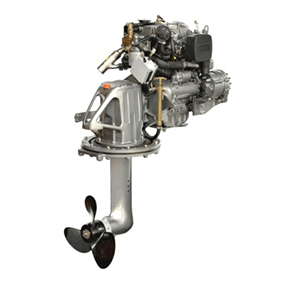

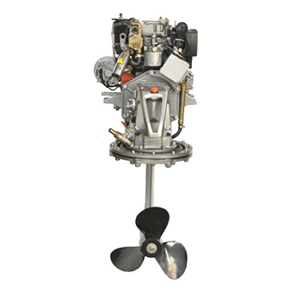

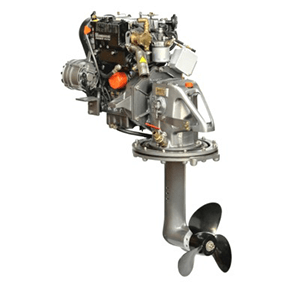

This Lombardini LDW 702 SD engine with Lombardini Marine S-Drive foot transmission system stands out for being a particularly compact and light inboard diesel marine engine. Taking advantage of the innovative Saildrive transmission system, it is perfectly suited for use on sailing and racing boats. 4-stroke, 2-cylinder, 20 hp engine.
Use and maintenance manual FOCS
Use and maintenance manual Sail Drive
Lombardini Marine Catalog
It is a family of 4-stroke marine diesel inboard engines (LDW 502 M, LDW 702 M, LDW 1003 M, LDW 1404 M) liquid cooled with heat exchanger, with zinc anode, monobloc cylinder block in cast iron (in aluminum on LDW 502M) with rebreatable liners, monolithic aluminum head, indirect injection with pump-injector, single overhead shaft distribution, timing control with toothed belt; oil pump on the crankshaft; fresh water pump in the monobloc; water-cooled exhaust pipe; self-priming sea water pump; air intake filter. Special anti-corrosion treatments.
.
Code: LDW 702 SD
Categories: Sail Drive, Inboard Marine Engines
