Lombardini Engine LDW 1404 SD
| Cylinders | 4 |
| Bore x Stroke (mm) | 75×77,6 |
| Displacement (cm3) | 1372 |
| Power Max HP | 40 hp |
| Power Max KW | 29,4 kw |
| Propeller Power HP | 37 hp |
| Propeller Power KW | 27,2 kw |
| Compression Ratio | 22,8:1 |
| RPM | 3600 |
Description

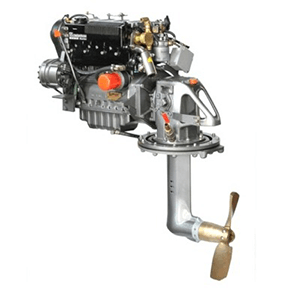

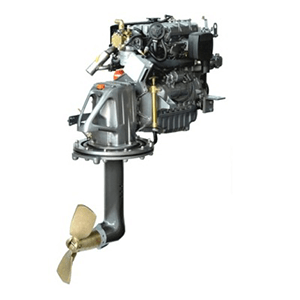

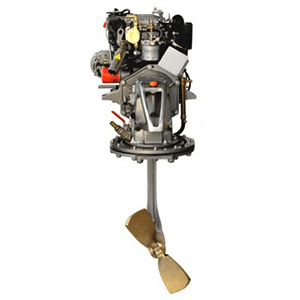

Among the engines with Saildrive transmission, this Lombardini LDW 1404 SD 40 hp 4-stroke diesel inboard engine is among the most used for sailing and racing boats. The S-Drive foot system is an innovative transmission system used for the Lombardini Marine SD series. Sturdy and reliable, it guarantees excellent performance thanks also to its characteristic lightness and compactness.
Use and maintenance manual FOCS
Use and maintenance manual Sail Drive
Lombardini Marine Catalog
It is a family of 4-stroke marine diesel inboard engines (LDW 502 M, LDW 702 M, LDW 1003 M, LDW 1404 M) liquid cooled with heat exchanger, with zinc anode, monobloc cylinder block in cast iron (in aluminum on LDW 502M) with resettable barrels, monolithic aluminum head, indirect injection with pump-injector, single overhead shaft distribution, timing belt control; oil pump on the crankshaft; fresh water pump in the monobloc; water-cooled exhaust pipe; self-priming sea water pump; air intake filter. Special anti-corrosion treatments.
Code: LDW 1404 SD
Categories: Sail Drive, Inboard Marine Engines
