Lombardini Engine LDW 1904 SD
| Cylinders | 4 |
| Bore x Stroke (mm) | 88×82 |
| Displacement (cm3) | 1995 |
| Power Max HP | 40,8 hp |
| Power Max KW | 30 kw |
| Propeller Power HP | 37,5 hp |
| Propeller Power KW | 27,6 kw |
| Compression Ratio | 22:1 |
| RPM | 3000 |
Description

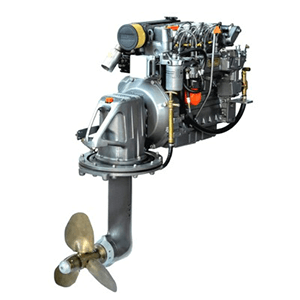

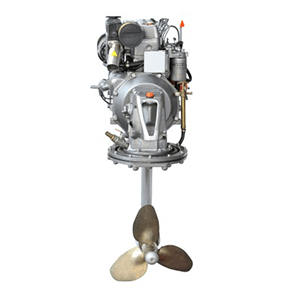

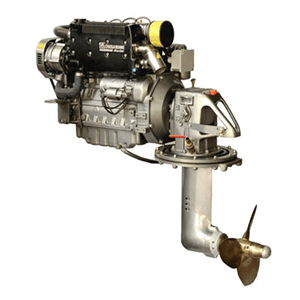

Lombardini LDW 1904 SD inboard diesel engine with Saildrive transmission, 4-cylinder 40 hp. This SD series engine by Lombardini Marine is a sturdy and reliable engine, characterized by particular lightness and compactness. Thanks to the innovative S-Drive foot transmission system, it finds its ideal location on sailing and racing boats.
Use and maintenance manual CHD
Use and maintenance manual Sail Drive
Lombardini Marine Catalog
These are 4-stroke diesel inboard marine engines (LDW 1904 M, LDW 2204 M, LDW 2204 MT) with liquid cooling with heat exchanger, with zinc anode, cast iron monobloc cylinder base with resettable liners; monolithic head in cast iron, indirect injection; single-shaft distribution with rods and rockers; hydraulic tappets; gear distribution control; oil pump on the crankshaft; water-cooled exhaust pipe; self-priming sea water pump; air intake filter. Special anti-corrosion treatments.
Code: LDW 1904 SD
Categories: Sail Drive, Inboard Marine Engines
