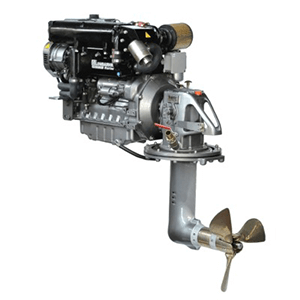

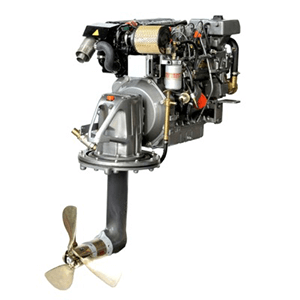

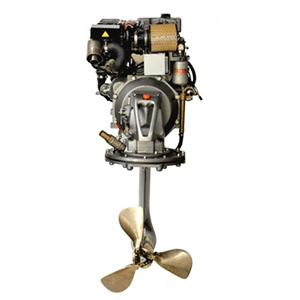

Lombardini Engine LDW 2204 TSD
| Cylinders | 4 |
| Bore x Stroke (mm) | 88×90,4 |
| Displacement (cm3) | 2199 |
| Power Max HP | 84 hp |
| Power Max KW | 61,8 kw |
| Propeller Power HP | 80 hp |
| Propeller Power KW | 59 kw |
| Compression Ratio | 22:1 |
| RPM | 3200 |
Description
This series of Lombardini LDW 2204 TSD inboard diesel engines, exceptionally light and compact, is now able to offer the highest level of reliability, allowing you to face every situation and every condition of use with greater safety.
Use and maintenance manual CHD
Use and maintenance manual Sail Drive
Lombardini Marine Catalog
These are 4-stroke diesel inboard marine engines (LDW 1904 M, LDW 2204 M, LDW 2204 MT) with liquid cooling with heat exchanger, with zinc anode, cast iron monobloc cylinder base with resettable liners; monolithic head in cast iron, indirect injection; single-shaft distribution with rods and rockers; hydraulic tappets; gear distribution control; oil pump on the crankshaft; water-cooled exhaust pipe; self-priming sea water pump; air intake filter. Special anti-corrosion treatments.
Code: LDW 2204 TSD
Categories: Sail Drive, Inboard Marine Engines
